AFT-9 Anti-Tank Missile Launcher 82488 Model:82488 The proportional model:1:35 Browse the number:7481 Add to Favorites Comment
Product introduction:

The HJ-9 entered service in the late 1990s and was first revealed during the national day military parade held in Beijing on 1 October 1999. The missile was claimed to have a armour penetration capability of 1,200mm RHA, which means that it can penetrate the front armour of most modern MBT in current service. The HongJian 9 in service with the PLA is carried on a 4X4 WZ550 armoured personnel carrier (APC) vehicle.



The WZ550 APC-mounted HongJian 9 system operated by a crew of three men, has an integrated weapon station containing an observation/fire-control unit and four tube missile launchers. When the vehicle is in travelling mode, the station can be retracted back to inside the troop compartment. There are four ready-to-launch missiles on the weapon station and eight spare missiles carried inside the vehicle. The station has an elevation from +10 to -10 degrees with +/-200 degree traverse. The fully automated weapon station is controlled by an operator inside the vehicle. The vehicle has a combat weight of 13.75t, and is powered by a 320hp turbo-charged diesel. The maximum road speed is 95km/h.

Item No	82488
Item Name	AFT-9 Anti-Tank Missile Launcher
Bar Code	6939319224880
Scale	1:35
Item Type	Static kit
Model Dimension	Length: 185.7mm   Width: 84mm
Total Plastic Parts	270+

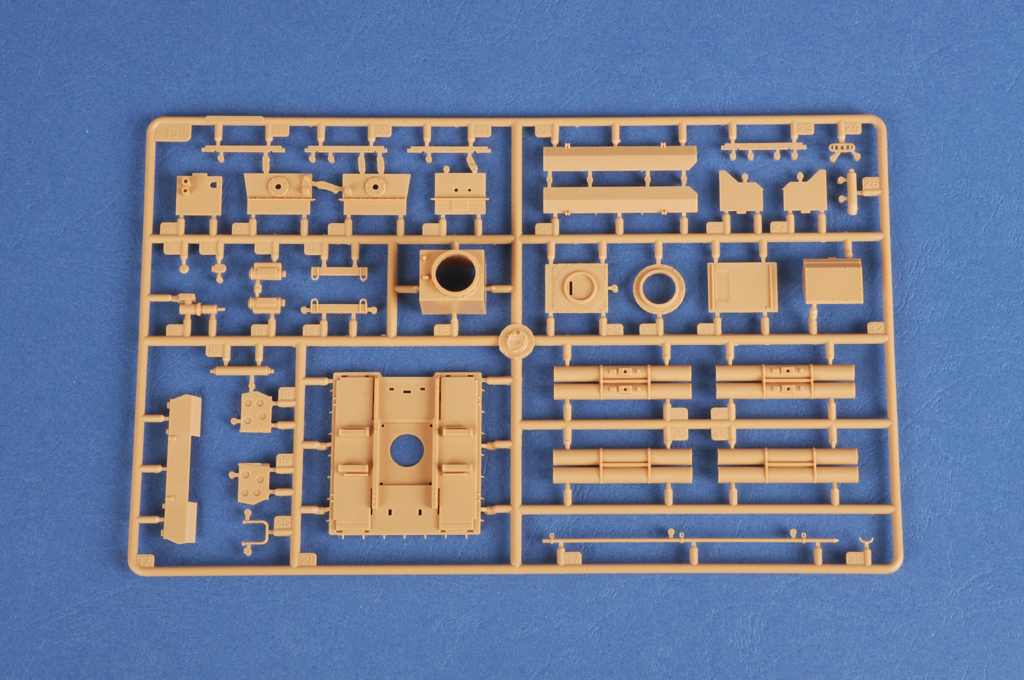

Total Sprues	8 sprues , upper hull, lower hull and tires
Chromeplate Parts	n/a
Resin Parts	n/a
Metal Parts	n/a

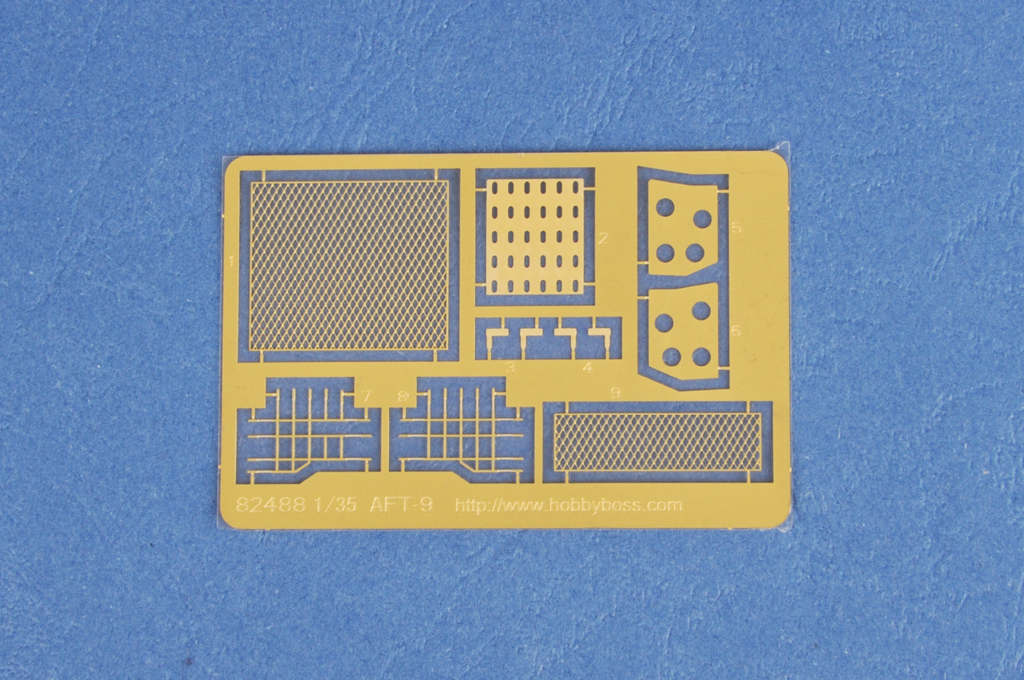

Photo Etched Parts	1 piece
Film Accessory	n/a
Released Date	2013-07
More Features	The kit consists of  over 270 parts - Multi-directional slide moulded lower hull and upper hull - Rubber tires have very good details - Photo-etched parts included
