Pz.Kpfw.VI Sd.Kfz.182 Tiger II (Porsche Early production vehicle Fgst.Nr.280009) 84558

Model:84558
The proportional model:1:35
Browse the number:3861

Add to Favorites

Comment


Product introduction:

In early October 1942, plans for production of the VK 45.03 were reviewedInitially two designs were provided, one by Henschel and one by Porsche. Both used a turret design from Krupp; the main differences were in the hull design, transmission and suspension.

The Henschel version used a conventional hull design with sloped armor resembling the layout of the Panther tank. It had a rear mounted engine and used nine overlapping road wheels per side, mounted on transverse torsion bars, in a similar manner to the original Tiger. To simplify maintenance, however, the wheels were overlapping rather than interleaved as in the Tiger

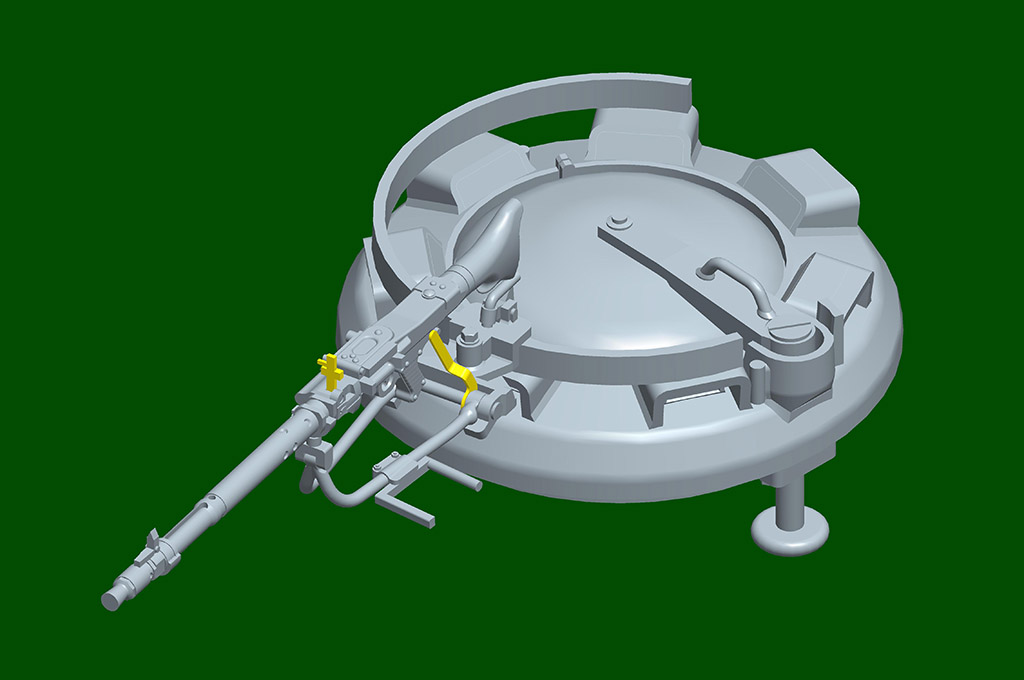

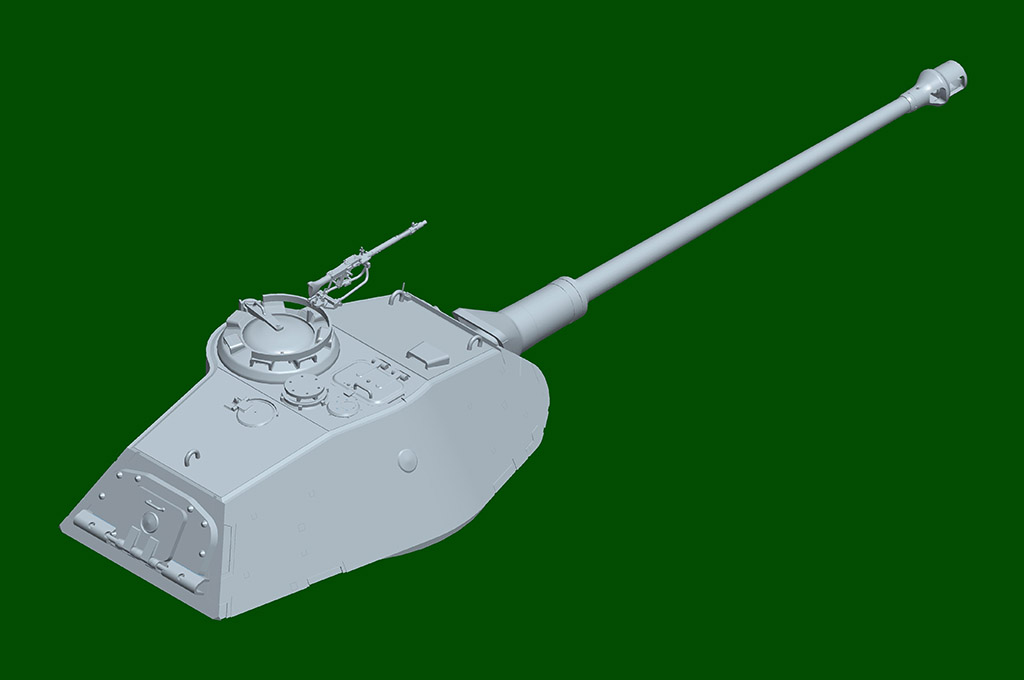

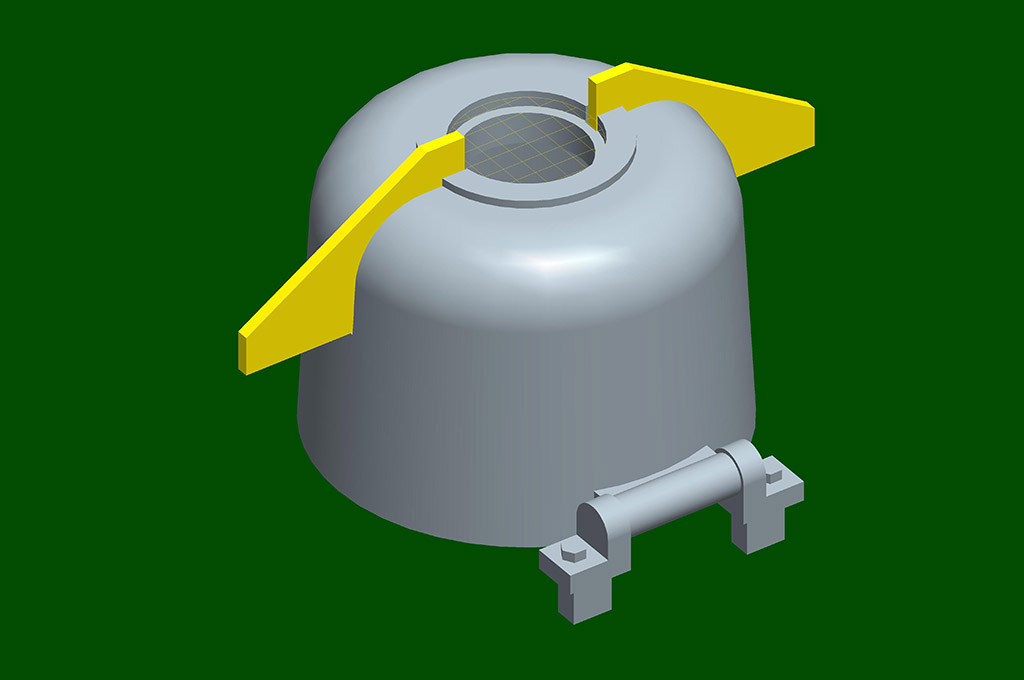

Henschel won the contract, and all Tiger IIs were produced by the firm. Two turret designs were used in production vehicles. The initial design is sometimes misleadingly called the "Porsche turret" due to the belief that it was designed by Porsche for their prototype. In fact this turret was simply the initial Krupp design for both prototypes. This turret had a rounded front and steeply sloped sides, with a difficult-to-manufacture curved bulge on the turret's left side, to accommodate the commander's cupola. Fifty early turrets were mounted to Henschel's hull and used in action. The more common "production" turret, sometimes called the "Henschel" turret, was simplified with a flat face, no shot trap (created by the curved face of the initial-type turret), less-steeply sloped sides, and no bulge for the commander's cupola.

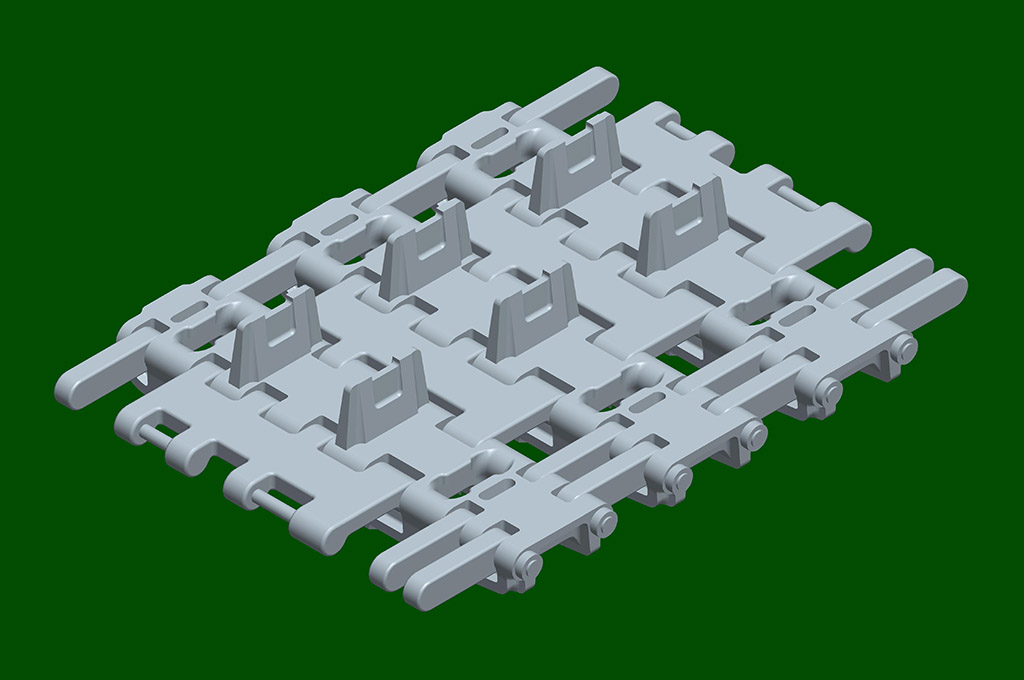

The track system used on the Tiger II chassis was a unique one, which used alternating "contact shoe" and "connector" linksthe contact shoe link had a pair of transverse metal bars that contacted the ground, while the connector links had no contact with the ground.

     The Tiger II was developed late in the war and made in relatively small numbers. Like all German tanks, it had a gasoline engine. However, this same engine powered the much lighter Panther and Tiger I tanks. The Tiger II was under-powered, like many other heavy tanks of World War II, and consumed a lot of fuel which was already in short supply.


Item No     84558
Item Name     Pz.Kpfw.VI Sd.Kfz.182 Tiger II (Porsche Early production vehicle Fgst.Nr.280009)
Bar Code     6939319245588
Scale     1:35
Item Type     Plastic Model Armor Kit
Model Dimension     Length: 292.3mm   Width: 107.3mm
Total Plastic Parts     1500+

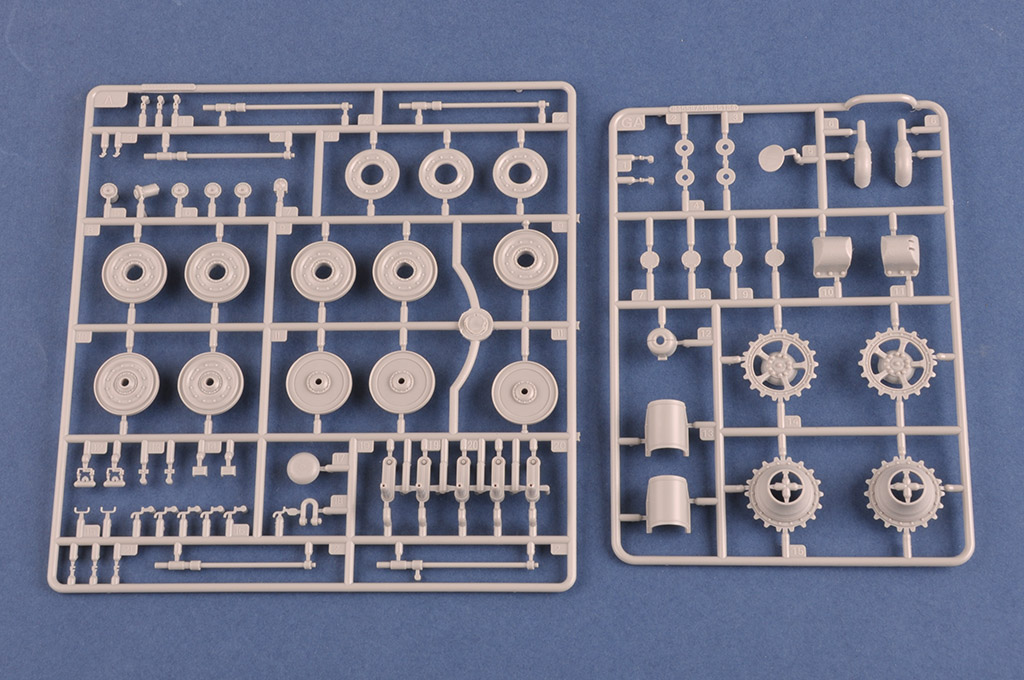

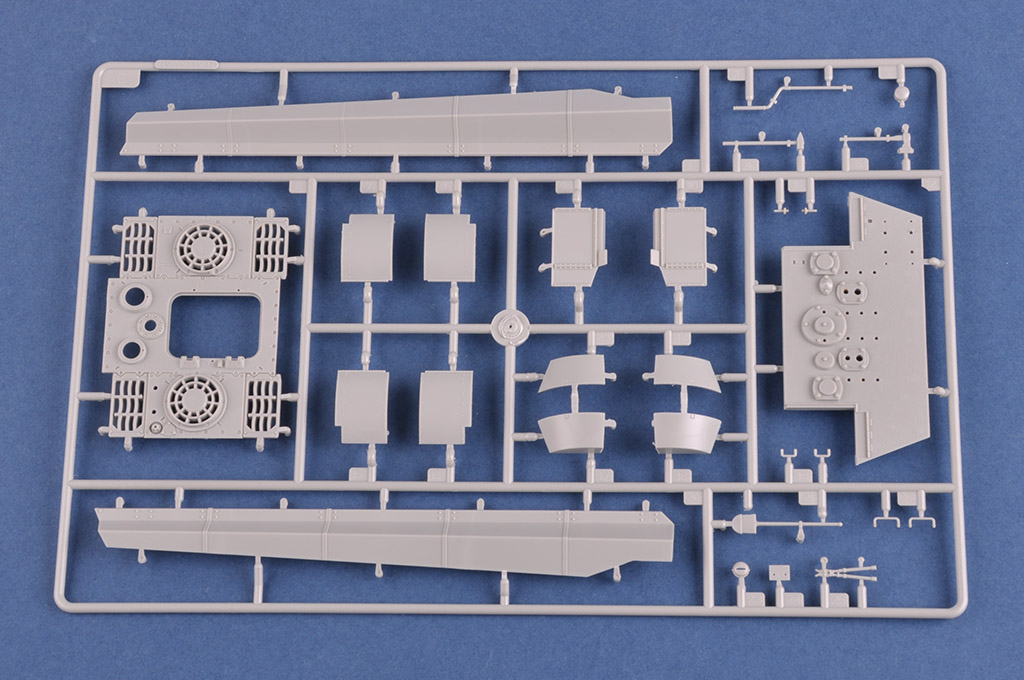

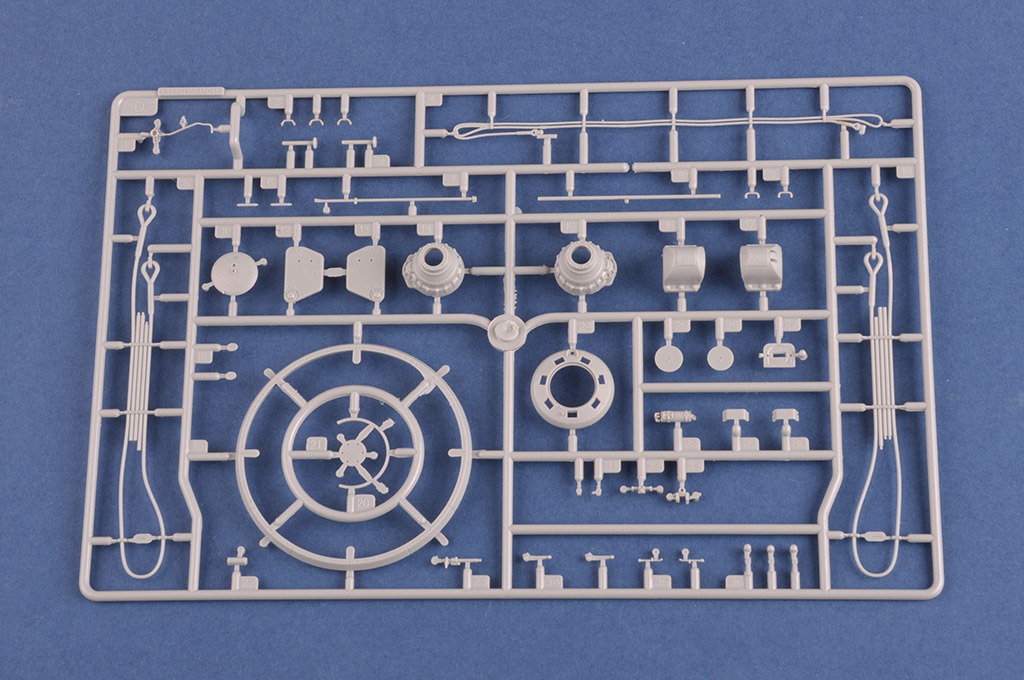

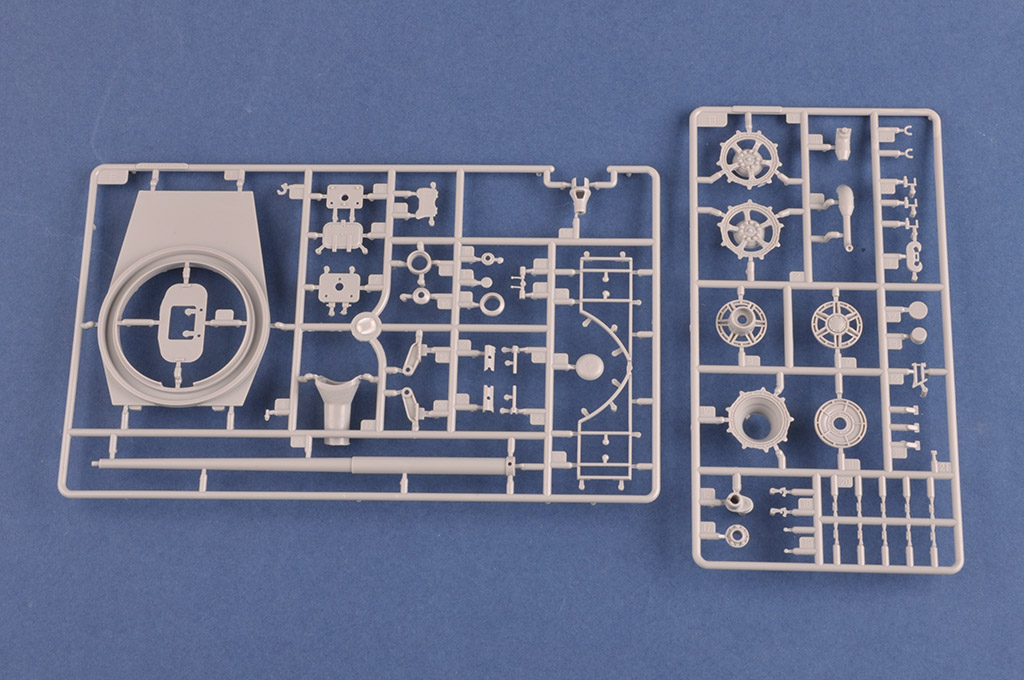

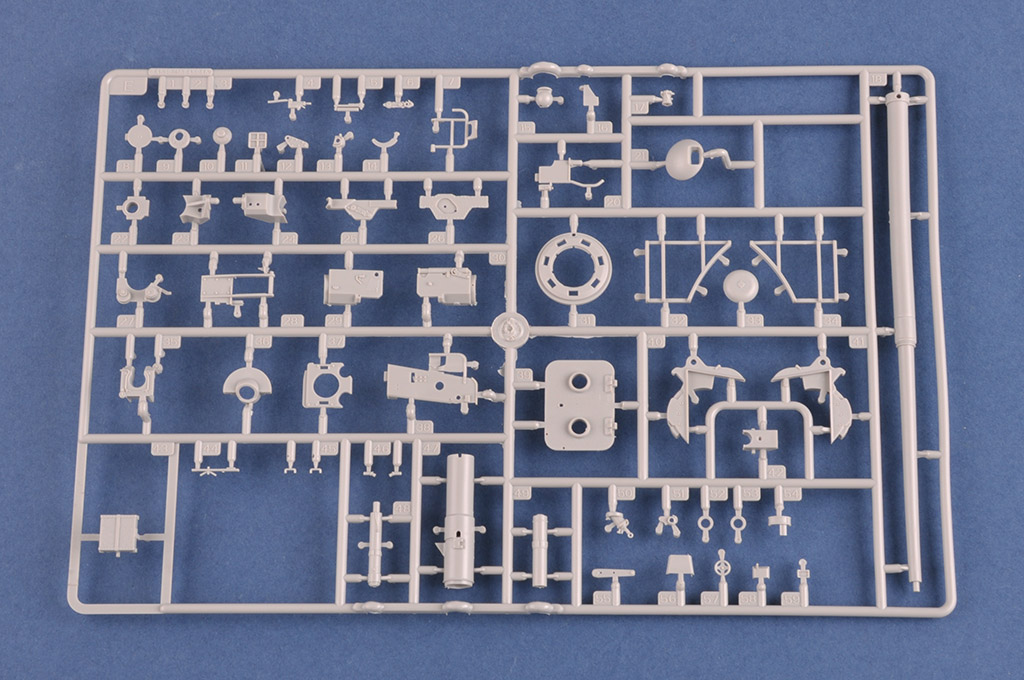

Total Sprues     29 sprues , turret , lower hull and upper hull
Chromeplate Parts     n/a
Resin Parts     n/a
Metal Parts     n/a

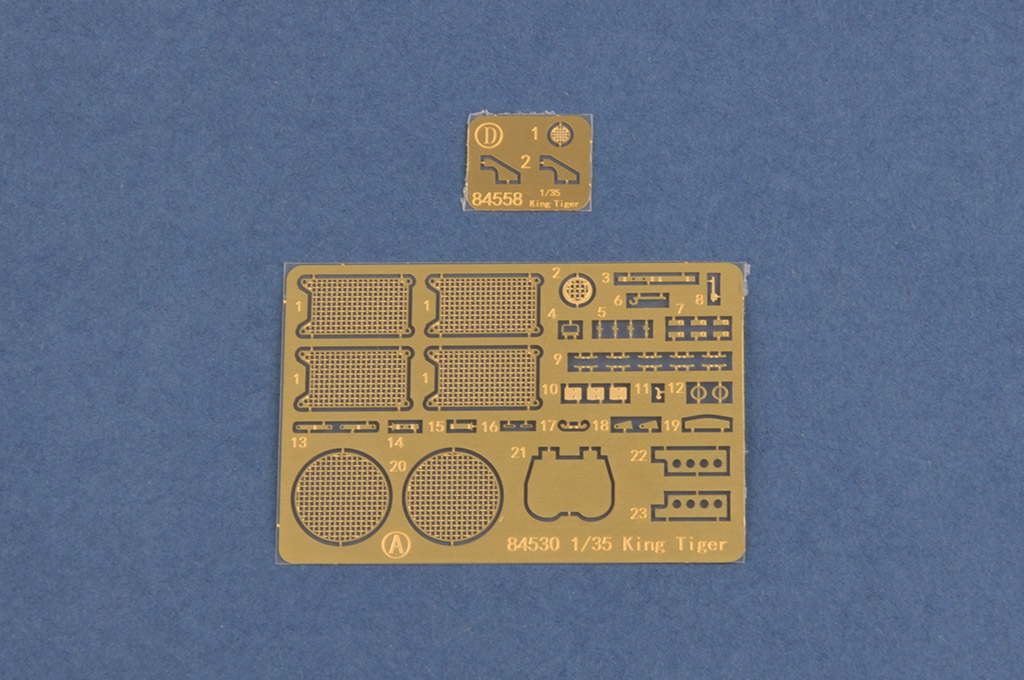

Photo Etched Parts     2 pcs

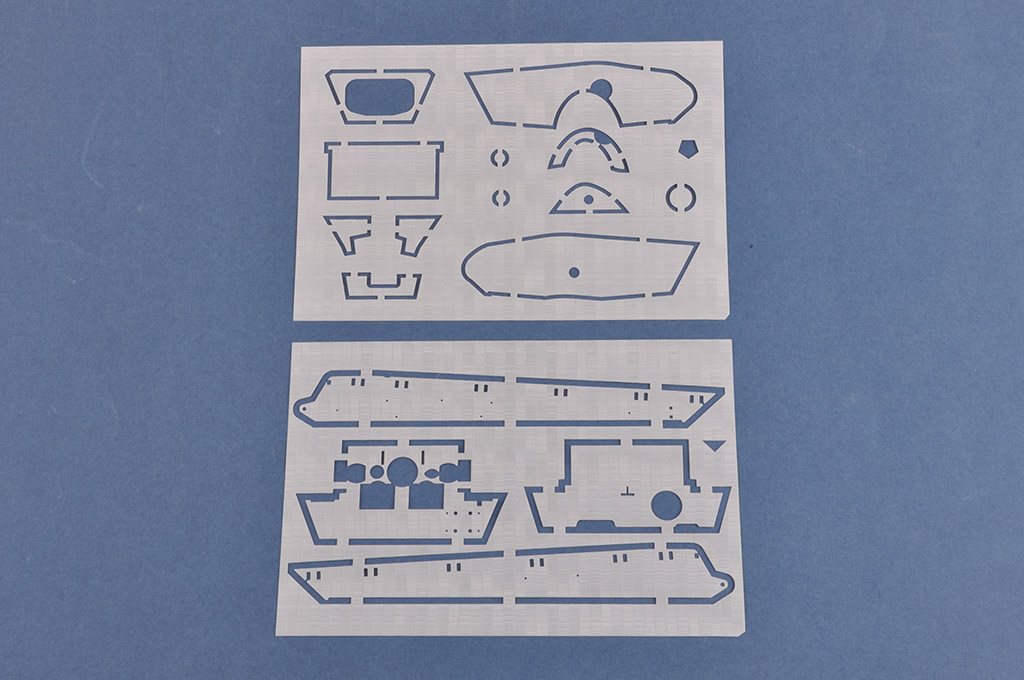

Film Accessory     zimmerit coat
Released Date     2022-04
More Features     The kit consists of over 1500 parts
>the kit w/refined detail
>multi-slide moulded lower hull , turret

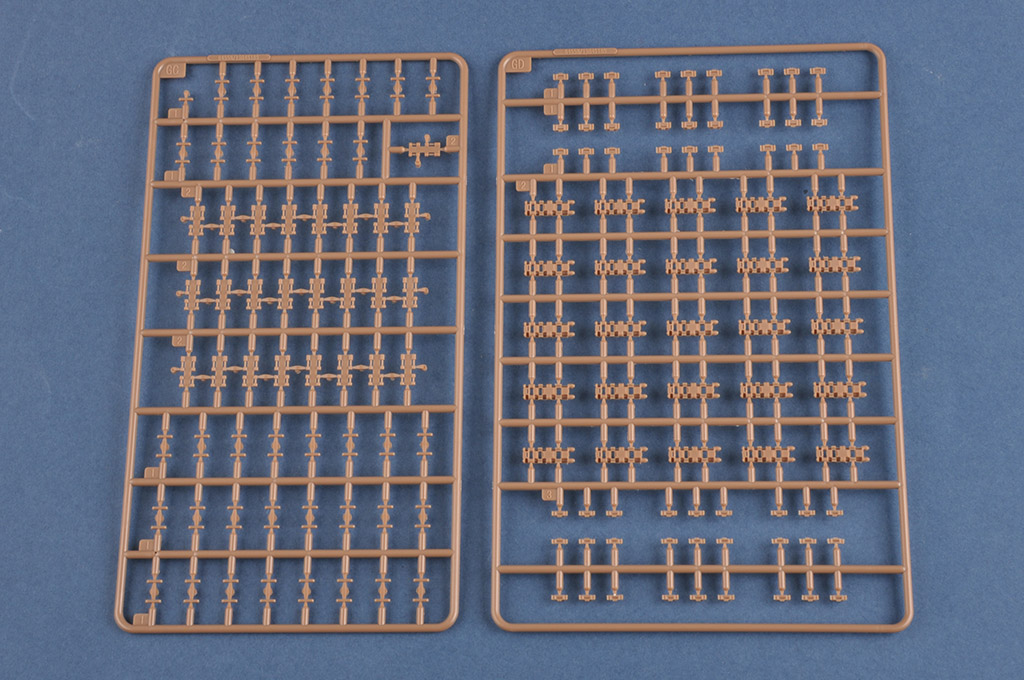

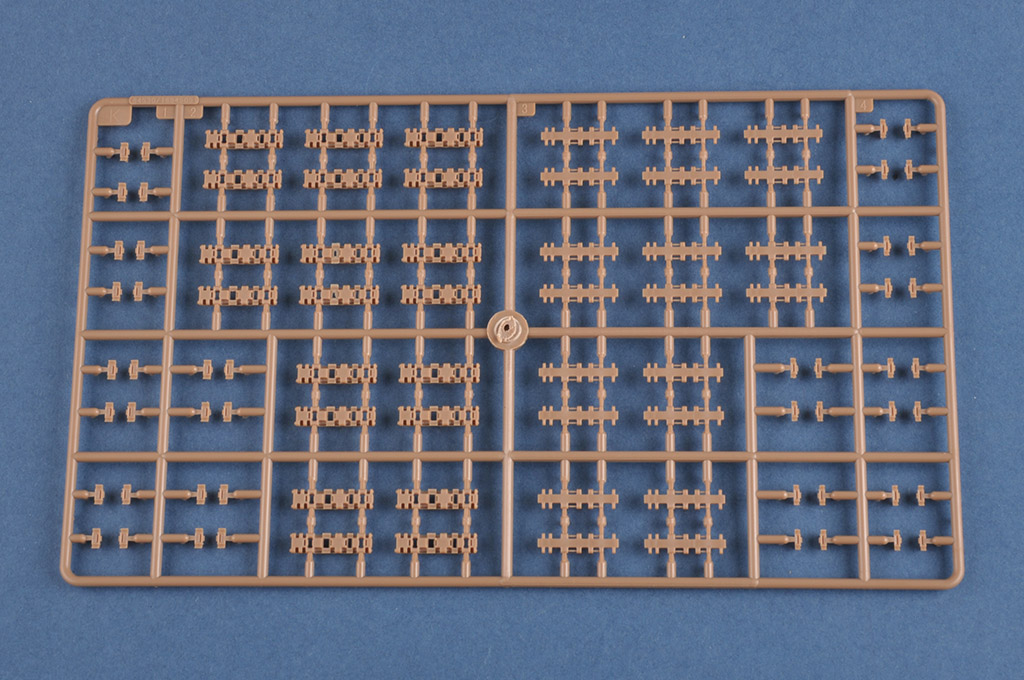

>individual tracks
>photo etched parts included
