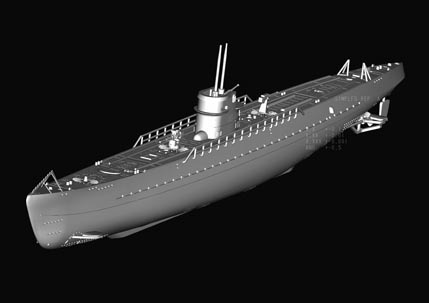

DKM Navy Type lX-A U-Boat 83506

Model:83506
The proportional model:1:350
Browse the number:6600

Add to Favorites

Comment


Product introduction:

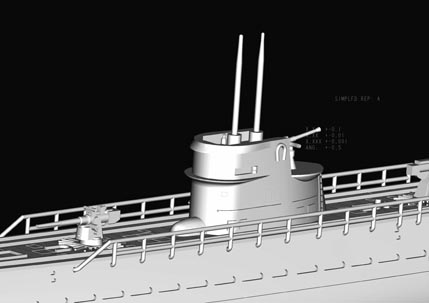

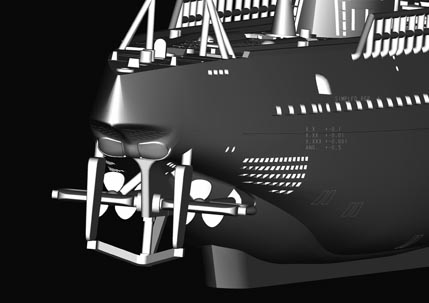

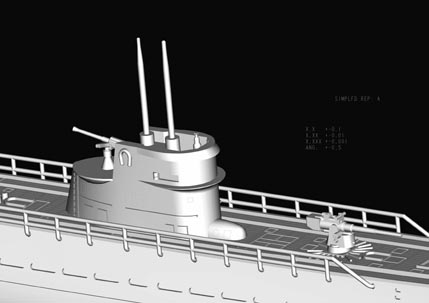

       Designed in 1935-1936 as large ocean-going U-boats, they were derived from type IA. Diving depth designed as 100m operational and 200m crush depth (many boats went much deeper and survived). Fitted with 6 torpedo tubes below the waterline (4 at the bow and 2 at the stern) they carried 22 torpedoes. They had the same hydroplane and rudder layout as the VIIC. One periscope in the control room (deleted from types IXC onwards) and two in the tower.Type IX had 5 external torpedo containers (3 at the stern and 2 at the bow) which stored 10 additional torpedoes. As mine-layers they could carry 44 TMA or 66 TMB mines. Secondary armament was provided by one large Utof 105/45 gun with about 110 rounds. AA armament differed throughout the war.

Parament
Item No    83506
Item Name    DKM Navy Type lX-A U-Boat
Bar Code    6939319235060
Scale    1:350
Item Type    Static kit
Model Dimension    Length: 219mm   Beam: 19mm
Total Plastic Parts    43pcs
Total Sprues    2 sprue, upper hull and lower hull
Chromeplate Parts    n/a
Camouflage Scheme    German Navy
Resin Parts    n/a
Metal Parts    n/a
Photo Etched Parts    2pcs
Film Accessory    n/a
Released Date    2010-06
More Features The kit consists of  25 parts in light grey plastic,18 Photo etched parts
- Photo Etched parts for handrails and stand.
